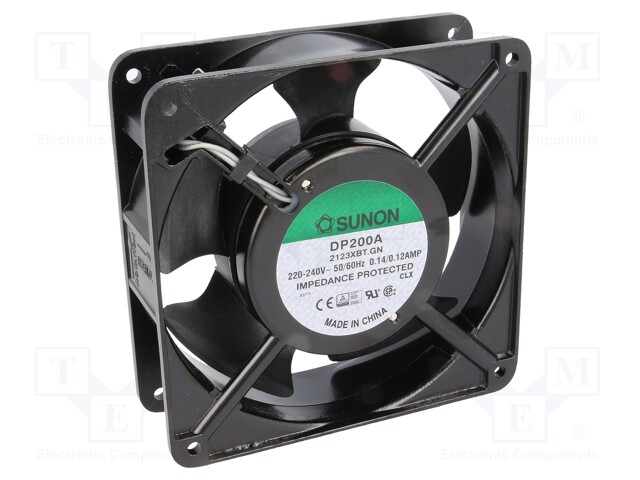

Fan: AC; axial; 230VAC; 120x120x38mm; 165m3/h(±10%); 45dBA; 2850rpm

Description Specifications Files 1 Fan: AC; axial; 230VAC; 120x120x38mm; 165m3/h(±10%); 45dBA; 2850rpm Kind of fan: axialFan dimensions: 120x120x38mmPower consumption: 22WCurrent rating: 0,14AFan efficiency: 165m3/h (±10%)Noise level: 45dBAKind of Bearing: ball bearingRotational rate/speed: 2850obr./minCurrent and power consumption tolerance: ±15%Frequency: 50HzMin. insulation resistance: 500MΩImpeller material: thermoplasticEnclosure material: aluminiumLeads: connectors 2,8x0,3mmOperating temperature: -10...70°CFlammability rating: UL94V-0Static pressure: 8,63mm H2O DP200A2123XBT Datasheet EN419.93KBDownload
