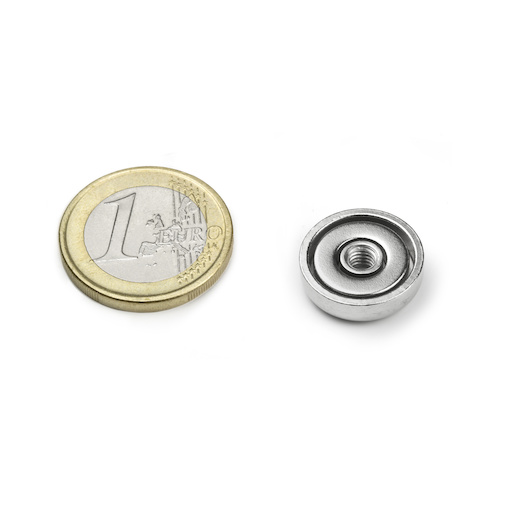

Magnet M4 with internal thread d=16mm h=4.5mm NdFeB N38 5.2kg

Description Specifications These neodymium pot magnets feature a metric M4 internal thread, allowing them to be securely fastened to objects with a corresponding external thread. This design provides a versatile and robust mounting solution for a wide range of applications.Please note: The full adhesive force of approximately 5.2 kg is achieved only when the ferromagnetic counterpart is smooth, of sufficient thickness, and when the magnet makes direct, full-flush contact. Pot magnets can lose a significant amount of their adhesive force even at a distance of just half a millimetre from the surface. This characteristic is more pronounced in pot magnets than in other types of neodymium or ferrite magnets. Article ID: ITN-16EAN: 7640155432733Material: NdFeBStrength: approx. 5,2 kg (approx. 51 N)Displacement force: approx. 1 kg (approx. 10,2 N)Colour: Silver-colouredPot diameter D: 16 mmPot height H: 4,5 mmThread size: M4Tolerance: /- 0,1 mmMagnetisation: N38Coating: Nickel-coated (Ni-Cu-Ni)Visible side of the magnet: North poleMax. working temperature: 80 °CDesign: With internal threadShape: DiscSteel: Q235 (China)Weight: 6,3 g
