hfbr-2416tz: fiber optic rcvr st

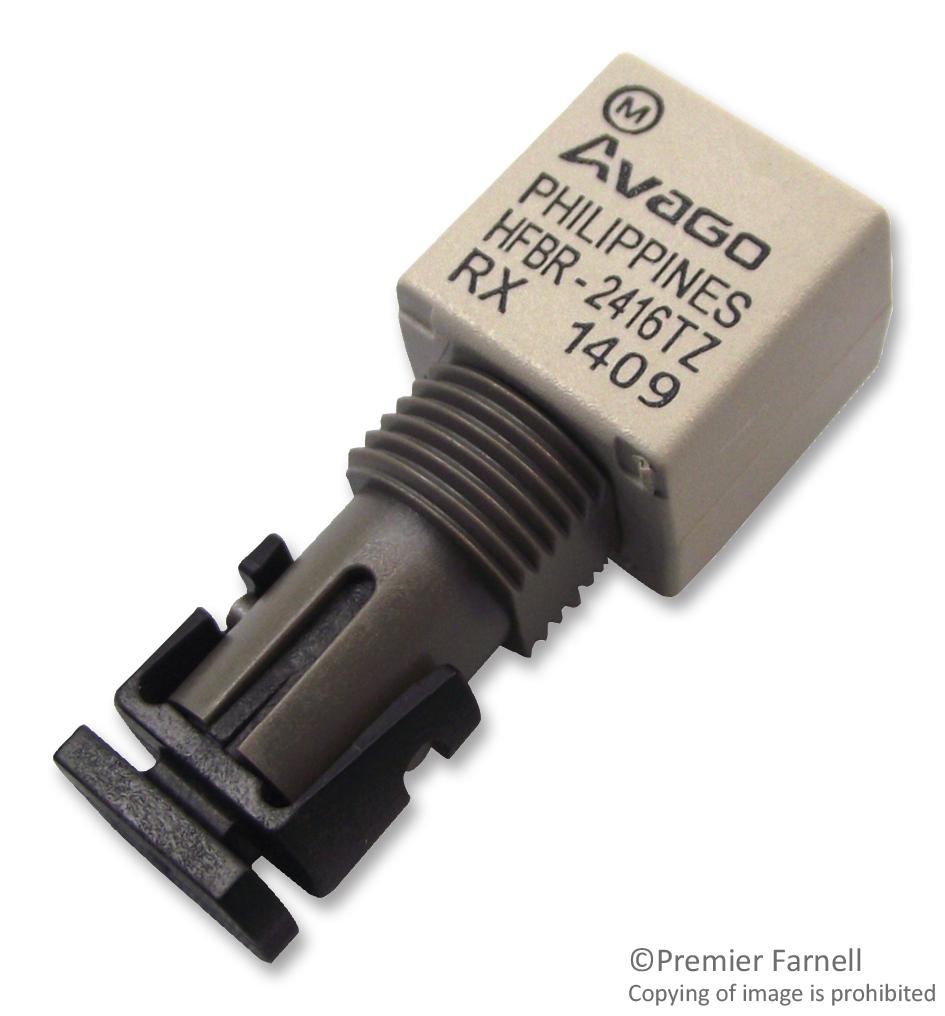

Description Specifications Files 1 The HFBR-2416TZ is a high-performance fiber optic receiver, expertly designed for seamless integration with the Broadcom HFBR-14x4Z fiber optic transmitter series. Featuring a threaded ST port, this receiver ensures reliable fiber optic links for a wide range of applications.Key Features - Meets IEEE 802.3 Ethernet and 802.5 Token Ring standards - Cost-effective receiver solution - Supports data rates up to 160MBd - Achieves link distances up to 2.7km - Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 mm HCS fiber - Operates within a wide temperature range of -40C to 85C - Features a unique optical port design for efficient coupling - Auto-insertable and wave solderable for streamlined manufacturing - Eliminates the need for board mounting hardware Applications - Computer to Peripheral Links - Computer Monitor Links - Digital Cross Connect Links - Modems and Multiplexers - Suitable for Tempest Systems - Industrial Control Links - 100BASE-SX Fast Ethernet - Media/fiber conversion, switches, routers, hubs, and NICs on 100BASE-SX - Local area networks - Central office switch/PBX links - Video links Additional Information The HFBR-2416TZ is RoHS compliant and features a durable plastic ST-threaded port. Designed for efficient pick and place and wave soldering, it is an excellent choice for high-volume production environments. The receiver is easily identifiable by its distinctive dark gray connector port. Wavelength: 820 nmData Rate: 160 MBdData Transmission Distance: 2700 mFall Time: 6.3 nsOperating Temperature: -40°C to 85°C 1771688.pdfDownload
